Edge IoT Router XS Specification¶
Datasheet. Release 1.4
Remote monitoring of critical infrastructure with edge computing¶
Pervasive computing systems are capable of collecting, processing, and communicating data. They can adapt to the data’s context and activity. In essence, this means creating a network that can understand its surroundings and improve the human experience and quality of life.

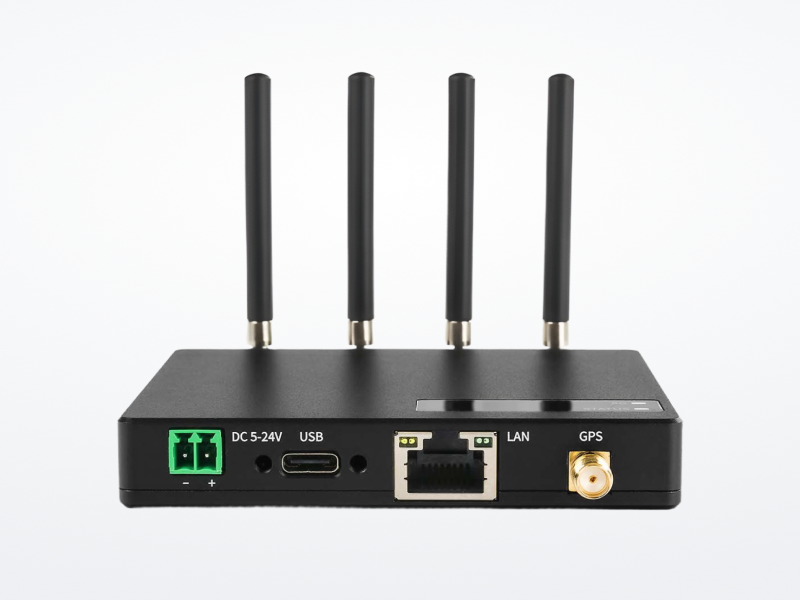

CTHINGS.CO® Edge IoT Gateway XS is a high-performance, industrial-grade 5G router designed for a variety of M2M and IoT applications. Built to industrial standards, it features a quad-core CPU and a cellular module supporting global WCDMA, 4G LTE, and 5G sub-6 GHz NSA and SA networks.
The Edge IoT Gateway XS also features a five-port Gigabit Ethernet switch, RS-232/RS-485 serial interfaces, and digital input/output ports. These capabilities enable users to scale M2M applications that combine data collection and high-speed transmission within limited time and budget constraints.
The CTHINGS.CO® Edge IoT Gateway XS is suitable for a wide range of applications, including smart grids, digital media, industrial automation, telemetry, medical equipment, digital factories, payment terminals, environmental monitoring, water conservation, and many more.
Specifications¶
Hardware Features |
Industrially certified hardware for enhanced 5G connectivity
|
Physical Interfaces |
|
Electrical Specification |
|
Connectivity |
Full flexibility which allows plug-and-play exchange of connectivity modules to meet requirements. Bandwidth overview and connectivity technologies:
|
Use Cases |
The gateway supports a vast range of applications across industries. Application examples:
|
Supported Frequencies¶
5G NR / LTE / HSPA+ subsystem¶
Band name |
Transmit (MHz) |
Receive (MHz) |
LTE-FDD |
LTE-TDD |
UMTS |
5GNR |
|---|---|---|---|---|---|---|
IMT (2100) |
1920-1980 |
2110-2170 |
B1 |
— |
B1 |
n1 |
PCS (1900) |
1850-1910 |
1930-1990 |
B2 |
— |
B2 |
n2 |
DCS (1800) |
1710-1785 |
1805-1880 |
B3 |
— |
B3 |
n3 |
AWS |
1710-1755 |
2110-2155 |
B4 |
— |
B4 |
— |
Cell (850) |
824-849 |
869-894 |
B5 |
— |
B5 |
n5 |
JCELL (800) |
830-840 |
875-885 |
— |
— |
— |
— |
IMT-E (2600) |
2500-2570 |
2620-2690 |
B7 |
— |
— |
n7 |
EGSM (950) |
880-915 |
925-960 |
B8 |
— |
B8 |
n8 |
J1700 |
1750-1785 |
1845-1880 |
— |
— |
— |
— |
700 low A-C |
699-716 |
729-746 |
B12 |
— |
— |
n12 |
700 upper C |
777-787 |
746-756 |
B13 |
— |
— |
— |
700 D |
788-798 |
758-768 |
B14 |
— |
— |
— |
B17 |
704-716 |
734-764 |
B17 |
— |
— |
— |
B18 |
815-830 |
860-875 |
B18 |
— |
— |
— |
B19 |
830-845 |
875-890 |
B19 |
— |
B19 |
— |
EU800 |
832-862 |
791-821 |
B20 |
— |
— |
n20 |
PCS + G |
1850-1915 |
1930-1995 |
B25 |
— |
— |
— |
B26 |
814-849 |
859-894 |
B26 |
— |
— |
— |
700 APAC |
703-748 |
758-803 |
B28 |
— |
— |
n28 |
FLO |
— |
717-728 |
B29 |
— |
— |
— |
WCS |
2305-2315 |
2350-2360 |
B30 |
— |
— |
— |
L-band |
— |
1452-1496 |
B32 |
— |
— |
— |
B34 |
2010-2025 |
2010-2025 |
— |
B34 |
— |
— |
B38 |
2570-2620 |
2570-2620 |
— |
B38 |
— |
n38 |
B39 |
1880-1920 |
1880-1920 |
— |
B39 |
— |
— |
B40 |
2300-2400 |
2300-2400 |
— |
B40 |
— |
— |
B41/B41XGP |
2496-2690 |
2496-2690 |
— |
B41 |
— |
— |
B42 |
3400-3600 |
3400-3600 |
— |
B42 |
— |
— |
B43 |
3600-3800 |
3600-3800 |
— |
B43 |
— |
— |
B46 |
5150-5925 |
5150-5925 |
— |
B46 |
— |
— |
B48 |
3550-3700 |
3550-3700 |
— |
B48 |
— |
n48 |
B66 |
1710-1780 |
2110-2200 |
B66 |
— |
— |
n66 |
B71 |
663-698 |
617-652 |
B71 |
— |
— |
n71 |
n77 |
3300-4200 |
3300-4200 |
— |
— |
— |
n77 |
n78 |
3300-3800 |
3300-3800 |
— |
— |
— |
n78 |
n79 |
4400-5000 |
4400-5000 |
— |
— |
— |
n79 |
Supported modulations¶
5G NR UL |
π/2-BPSK, QPSK, 16QAM, 64QAM, 256QAM |
5G NR DL |
QPSK, 16QAM, 64QAM, 256QAM |
LTE |
QPSK, 16QAM, 64QAM, 256QAM |
UMTS |
QPSK, 16QAM, 64QAM |
5G SA / NSA operation modes¶
NSA |
n38/n41/n77/n78/n79 |
SA |
All 5G bands |
5G SA / NSA bandwidth |
Up to 100 MHz |
SCS |
15 kHz on NR FDD and 30 kHz on NR TDD |
MIMO support¶
5G NR UL |
2 × 2 MIMO (5G SA only):
n41/n77/n78/n79
|
5G NR DL |
4 × 4 MIMO:
n1/n2/n3/n7/n25/n38/n40/n41/n48*/
n66/n77/n78/n79
|
LTE DL |
4 × 4 MIMO:
B1/B2/B3/B4/B7/B25/B30/B32/B34/
B38/B39/B40/B41/B42/B43/B48/B66
|
5G NR Option |
3x, 3a, 3, 2 compatible |
LTE Category |
DL Cat. 16; UL Cat. 18 |
LTE RF BW support |
1.4/3/5/10/15/20 MHz |
Transmit power class¶
WCDMA bands |
Class 3 (24 dBm +1/-3 dB) |
LTE bands |
Class 3 (23 dBm ± 2 dB) |
LTE B38/B40/B41/B42/B43 bands
HPUE single-carrier
|
Class 2 (26 dBm ± 2 dB) |
5G NR bands |
Class 3 (23 dBm ± 2 dB) |
5G NR n41/n77/n78/n79 |
Class 2 (26 dBm +2/-3 dB) |
Key Features¶
Extensive Connectivity |
Wireless connectivity via:
5G SA/NSA, LTE Cat. 16/18
|
Localisation |
GPS, GLONASS, Galileo, BeiDou, COMPASS, QZSS, and Cell ID positioning |
Vast IoT Protocol Suite |
Native support for modern protocols: IPv4/IPv6, TCP, UDP, DHCP, HTTP(S), ARP, NTP, DNS, SSH, Telnet, VLAN, etc. |
Gigabit Ethernet |
Share a 5G SA/NSA or LTE-A network over a Gigabit RJ-45 Ethernet port |
Virtual Private Networks |
Easy configuration and use of common VPN tunnels: IPsec, OpenVPN, L2TP, and PPTP |
Wide Input Power Supply |
Ultra-wide, surge-protected input power supply from 5–24 VDC |
Reliability |
On-board hardware watchdog for uninterrupted performance |
Ultra-low Power |
Extremely low power consumption, typically 4 W |
Device Design¶

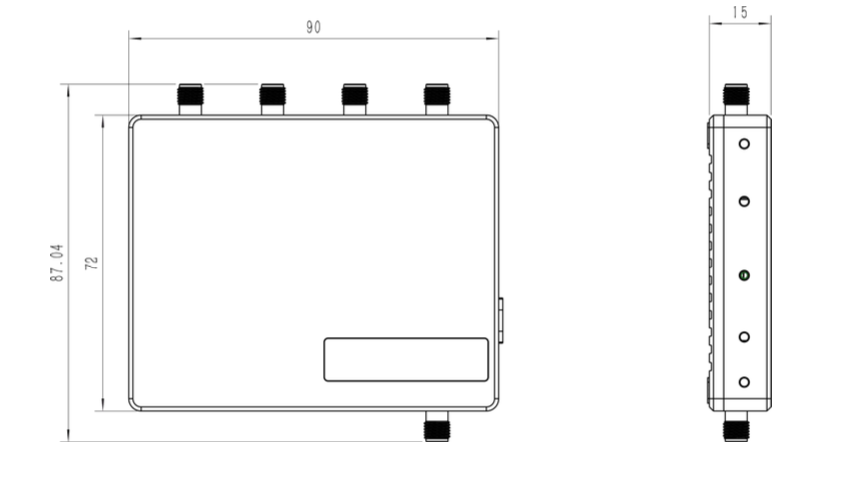

Dimensions¶

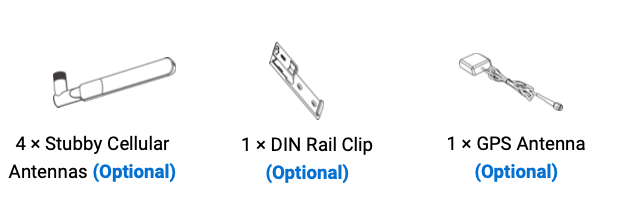

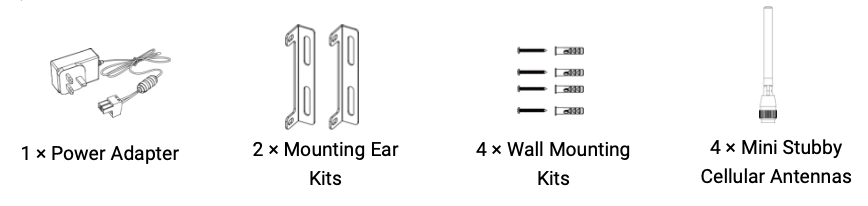

Accessories¶
